Why Use Alkali-Impregnated Coal Quality Carbon for Gas Treatment?

Alkali-impregnated coal quality impregnated carbon represents a specialized modified activated carbon engineered to address the persistent challenge of acidic gas removal in industrial environments. Unlike conventional adsorbents that rely solely on physical adsorption, this advanced material combines the microporous structure of premium anthracite-derived activated carbon with chemically reactive alkaline components such as sodium hydroxide and potassium hydroxide. This dual mechanism allows it to not only trap but also neutralize acidic pollutants like SO₂, Cl₂, and NOₓ through chemical reactions, delivering superior purification efficiency. This specialized carbon material addresses critical compliance demands while extending system service life and reducing operational costs.

Understanding Alkali-Impregnated Coal Quality Carbon

Chemical Composition and Manufacturing Process

High-quality anthracite coal is used as the starting material. It is carefully shaped, carbonized, and activated to create a large network of pores. After being activated, the carbon matrix is treated with a special impregnation method that adds alkaline active ingredients, usually NaOH or KOH, at levels ranging from 5% to 25%, based on the needs of the application. This impregnation changes the chemistry of the carbon's surface, making reactive sites that can take in acidic gases through chemisorption instead of just physical entrapment.

The final product still has an iodine binding value of at least 800 mg/g, showing that the microporous structure has been kept even after chemical change. With a pH range of 11.5 to 13.5, the carbon is highly alkaline, which means that acidic pollutants are neutralized as soon as they come into touch with it. The material keeps more than 90% of its mechanical strength, which means that it doesn't make much dust and stays structurally sound while it's being handled and used.

Key Performance Parameters

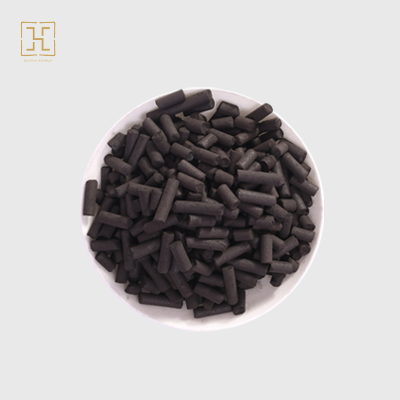

The material's suitability for demanding commercial uses is based on its technical specs. The particles can be changed in size from 8 to 30 mesh or 20 to 40 mesh granules to φ1.5 to 3.0mm cylinder-shaped pellets, so they can be used in a variety of machine setups. The amount of moisture is kept below 10% to keep the best reaction rates and stop the alkali components from breaking down too quickly. The ash level stays below 8%, which means there isn't much inactive matter that could lower the adsorption capacity.

SO₂ adsorption capacity exceeds 180 mg/g in standard formulations, and over 220 mg/g in enhanced versions when KOH loading goes above 15%. This is important for application performance. Immersion stability testing shows that the loss of alkali components after soaking stays below 3%. This proves that the impregnation is durable and won't wash out in hot working conditions.

Advantages of Using Alkali-Impregnated Coal for Gas Treatment

Enhanced Acidic Gas Removal Efficiency

Because van der Waals interactions are weak, standard activated carbons have trouble with acidic gases with low molecular weight. Chemical neutralization reactions help alkali-impregnated coal quality impregnated carbon variants get around this problem. When SO₂ comes in touch with the impregnated surface, it mixes with sodium or potassium hydroxide to make stable sulfate salts. These salts hold the pollutant inside the carbon matrix forever. When compared to physical adsorption alone, this chemisorption process has a much higher capacity.

Testing from industrial flue gas treatment shows that alkali-impregnated coal quality impregnated carbon that is properly made can lower SO₂ levels to below 10 mg/m³, which meets strict emission standards such as EU BAT requirements. The material keeps working the same way even when it comes to treating industrial gases with a lot of sulfur, which is when regular carbons quickly become saturated and break down.

Low-Temperature Catalytic Performance

To meet environmental standards, NOₓ levels often need to be lowered along with sulfur removal. Traditional selective catalytic reduction systems only work well at high temperatures (300–400°C), which means that the waste gas has to be heated up, which uses a lot of energy. Activated alkali-impregnated coal quality impregnated carbon reduces NOₓ at much lower temperatures, keeping removal rate between 85 and 90% at 120 to 180°C working temperatures. This feature gets rid of the need for warming, which directly cuts down on energy use and running costs while making system design easier.

Extended Service Life and Regeneration Stability

In the industrial world, replacing a carbon bed means a lot of money spent on maintenance and downtime for operations. The strong chemical stability of properly impregnated carbon, along with its resistance to sulfur poisoning, means that it can be used for longer than two years in harsh environments with high SO₂ levels. It lasts a long time because the impregnation process strengthens the structure and creates stable reaction products that don't damage the carbon porosity.

The material keeps 85–90% of its original adsorption capacity after thermal renewal. This is a much higher percentage than with regular carbons, which often lose their pore structure during regeneration processes and can't be fixed. When things are stable, they don't need to be replaced as often and cost less over their whole life. This makes gas treatment operations more profitable.

Comparing Alkali-Impregnated Coal with Other Carbon Solutions

Performance Against Standard Activated Carbon

Physical adsorption is the best way for standard coal-based activated carbon to get rid of organic compounds and high-molecular-weight pollutants. But the chemistry on its surface is still pretty neutral, which makes it less effective against polar acidic gases. The SO₂ breakthrough capacity on unaltered carbon stays below 50 mg/g, which means that the bed needs to be replaced more often and the installation volume needs to be bigger.

Adding alkali changes this performance profile in a basic way. Because embedded hydroxides react chemically, they improve SO₂ capacity by four times or more. This means that equipment can be smaller and run for longer periods of time. The material also has a high selectivity for acidic gases in complex mixes, meaning it picks out target pollution and lets other gas components pass through.

Comparison with Other Impregnated Carbons

For specific gas treatment needs, there are different impregnation strategies available. Sulfur-impregnated carbons are used to get rid of mercury, and silver-impregnated carbons are used to capture radioactive iodine. Alkali-impregnated coal quality impregnated carbon has its own niche when it comes to neutralizing acidic gases and speeding up reactions at low temperatures. Different types of impregnation are chosen based on the specific pollutants and operating conditions of the application.

Compared to acid-impregnated carbons that are meant to remove ammonia, alkali variants work at the other end of the pH range. This shows that surface chemistry changes can be made to fit different methods of capture. When procurement professionals understand these differences, they can match the properties of materials exactly to the needs of an application. This improves both technical performance and cost-effectiveness.

How to Procure High-Quality Alkali-Impregnated Carbon for Your Projects

Identifying Qualified Suppliers

A good buying process starts with evaluating suppliers based on their ability to make things, their quality control systems, and their expert support services. Certified compliance with ISO 9001, ISO 14001, and ISO 45001 shows dedication to quality management, caring for the environment, and keeping workers safe. These certifications give people confidence that the production method stays the same and that the goods meet the stated requirements.

When it comes to customization and fixing problems, suppliers who have research partnerships with universities and national labs usually have better technical skills. Advanced makers are different from basic providers because they can change the amounts of alkali, the particle sizes, and the pore structures to make them work best for different uses. Asking for technical data sheets, test reports from a third party, and application case studies can help you confirm the performance claims.

Evaluation of Product Samples

Before placing large-volume orders, procurement teams should request representative samples of alkali-impregnated coal quality impregnated carbon for independent testing or pilot-scale evaluation. Verifying key parameters of alkali-impregnated coal quality impregnated carbon, including iodine value, mechanical strength, and alkali loading percentage, against manufacturer specifications is an essential step in the qualification process. Conducting gas breakthrough tests with actual sample feed streams provides direct performance validation of alkali-impregnated coal quality impregnated carbon under conditions that closely match the intended application.

Additional analysis of moisture content and ash content helps confirm that alkali-impregnated coal quality impregnated carbon meets requirements for stable storage and effective chemical impregnation. Sample inspections should also evaluate the particle size distribution of alkali-impregnated coal quality impregnated carbon to ensure consistent performance. Excessive formation of fines may indicate reduced mechanical durability, which can shorten service life, increase pressure drop, and create channeling problems within the adsorption bed. Proper evaluation of alkali-impregnated coal quality impregnated carbon before purchase helps ensure reliable operation, consistent quality, and long-term treatment efficiency.

Understanding Pricing and Logistics

Because it takes more steps to make and costs more to load chemicals onto it, alkali-impregnated coal quality impregnated carbon is more expensive than regular activated carbon. Prices usually run from $2,500 to $5,000 per metric ton, based on the amount of alkali, the shape of the particles, and the size of the order. Bulk procurement agreements that cover more than one shipment often get better prices and make sure that operations can keep running.

As part of logistics, alkali components can take moisture from the air and lose their ability to respond, so they need to be properly packaged to keep them dry during transport and storage. Lead times are usually between 7 and 15 days for standard formulations that are already in stock. For customized specs, production and quality checks may take between 15 and 30 days. Building relationships with suppliers and keeping a lot of inventory on hand lets you respond quickly to tight project deadlines.

Best Practices for Implementing Alkali-Impregnated Carbon in Gas Treatment Systems

System Design Considerations

For the carbon bed to work at its best, it needs to be properly integrated into the gas treatment system. Enough residence time, which is usually between one and three seconds depending on the amount of pollution and how well it needs to be removed, makes sure that gas molecules and reactive carbon surfaces can interact with each other. To get the performance you want while keeping the pressure drop across the carbon layer at a good level, you need to find the right mix between bed depth, gas velocity, and cross-sectional area.

Controlling humidity has a big effect on how well many alkali-impregnated formulations work. Moderate humidity levels (30–70% relative humidity) actually make things more reactive by making it easier for gaseous pollutants and the alkali components to react with each other ionically. Pre-conditioning devices that change the amount of wetness in the air before the carbon bed can improve how well it captures particles and make it last longer.

Performance Monitoring and Maintenance

Using the right sensors to keep an eye on the concentrations of outlet gases all the time lets you see how well the carbon bed is working and spot breakthrough conditions early. Taking measurements of the standard pressure drop at installation and keeping track of changes over time gives information about the state of the bed and helps plan maintenance tasks before performance loss affects compliance.

By taking samples and analyzing spent carbon from different bed depths on a regular basis, scientists can see how the saturation front moves and decide when to replace or regenerate the carbon. During maintenance periods, a visual inspection looks for ducting, bed settling, or other physical changes that might make the gas-solid contact less effective.

Conclusion

Because it can both physically adsorb and neutralize chemicals, alkali-impregnated coal quality impregnated carbon has been shown to be useful for treating acidic industrial gases. The material's ability to remove ultra-high levels of SO₂, speed up the reduction of NOₓ at low temperatures, and keep working well over a long period of time meets important practical and legal requirements in the petroleum, industrial, and environmental sectors. To fully grasp the economic and technical benefits this specialized carbon material offers, execution must be carefully planned with the right supplier, system design, and ongoing performance tracking.

FAQ

What makes alkali-impregnated carbon better at getting rid of acidic gases than regular activated carbon?

The way carbon is removed changes from physical adsorption to chemical reduction when alkaline substances like potassium hydroxide or sodium hydroxide are added. Acidic gases like SO₂ and Cl₂ react with the alkali that was soaked in them to make stable salts. These salts hold on to pollutants inside the carbon structure forever. For acidic gas uses, this chemisorption process increases capacity by 300–400% compared to carbon that hasn't been changed.

Can alkali-impregnated carbon be heated again and again like regular activated carbon?

Because of how the chemical reactions work, thermal renewal works differently than with regular carbon. The carbon matrix can handle temperatures high enough for regeneration, but the sulfate and chloride salts that are made when acidic gas is captured stay stable and don't easily evaporate. Most uses see alkali-impregnated coal quality impregnated carbon as a material that needs to be replaced instead of being regenerated. However, the fact that it lasts longer (2+ years) makes up for this by reducing the number of times it needs to be replaced.

How does humidity affect the performance of alkali-impregnated carbon devices?

Moderate humidity levels, between 30 and 70% relative humidity, actually make many alkali-impregnated formulas work better. Ionic reactions are needed to neutralize acidic gases, and moisture makes them easier to happen. Conditions that are too dry can lower responsiveness, and conditions that are so wet that they reach saturation may change the way the impregnated parts look. The right way to build a system includes controlling the humidity to keep the right amounts of moisture for the carbon to work at its best.

Partner with Shanxi Xinhua Carbon Technology Industry Co., Ltd. for Superior Gas Treatment Solutions

Shanxi Xinhua Carbon Technology Industry Co., Ltd. stands as a trusted alkali-impregnated coal quality impregnated carbon manufacturer with over 60 years of expertise in advanced carbon material development. Our defense-grade quality control systems, national production base network, and partnerships with Tsinghua University and the Chinese Academy of Sciences all help us make sure that our products meet the strictest industrial standards. Through our accelerated logistics routes, we can send customized formulations in as little as three days from the time we receive your order. Whether your project needs normal 8-30 mesh granular carbon or specialized cylinder shapes with custom alkali loading, our expert team can help you with everything, from choosing the right material to making the best use of your system. You can email us at greta@carbonxinhua.com or visit xhcarbontech.com to talk about your specific gas treatment problems and get product suggestions based on thorough testing results.

References

1. Bandosz, T.J. (2006). Activated Carbon Surfaces in Environmental Remediation. Interface Science and Technology Series, Vol. 7. Amsterdam: Elsevier.

2. Marsh, H., & Rodríguez-Reinoso, F. (2006). Activated Carbon. Oxford: Elsevier Science.

3. Przepiórski, J., Skrodzewicz, M., & Morawski, A.W. (2004). High temperature ammonia treatment of activated carbon for enhancement of CO₂ adsorption. Applied Surface Science, 225(1-4), 235-242.

4. Seredych, M., & Bandosz, T.J. (2007). Mechanism of ammonia retention on graphite oxides: Role of surface chemistry and structure. Journal of Physical Chemistry C, 111(43), 15596-15604.

5. Tan, Z., & Qiu, J. (2010). Removal of SO₂ by activated carbon impregnated with NaOH or Na₂CO₃. Environmental Technology, 31(2), 185-192.

6. Yang, R.T. (2003). Adsorbents: Fundamentals and Applications. Hoboken, New Jersey: John Wiley & Sons, Inc.
