High quality 9mm coal cylindrical carbon factory direct supply

Standard filter materials don't work well in harsh industrial settings with high flow rates, lots of dust, and environments that rust. These problems are taken care of by our 9mm coal quality cylindrical carbon from Shanxi Xinhua Carbon Technology Industry Co., Ltd. These columnar particles with an ultra-large diameter have iodine values of up to 1100 mg/g, a mechanical strength of over 97%, and have been shown to keep systems from getting clogged in flue gas cleaning, wastewater treatment, and solvent recovery systems.

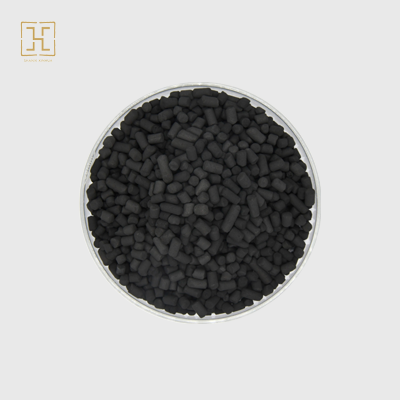

Understanding 9mm Coal Cylindrical Carbon Quality and Properties

How well large-diameter activated carbon works depends on its exact chemical and physical properties. These standards have been improved over many years of study work with Tsinghua University and the Chinese Academy of Sciences by our engineering team.

Core Physical Specifications

The particle width of 9mm coal quality cylindrical carbon (±0.2mm) isn't just chosen at random; this size makes the best flow behavior in large industrial systems. The perceived density is between 450 and 550 g/L, which is a good mix between how stable it is mechanically and how well it can absorb things. It has more than 50% porosity and a well-developed macroporous structure that makes mass movement as easy as possible. This design makes it easy for pollutants to get to adsorption sites fast, even when cleaning streams with a lot of them.

Ball-pan hardness is higher than 95%, which means that these particles don't break when they are backwashed, moved, or exposed to high-pressure media for a long time. The amount of ash stays below 12%, which keeps it from getting in the way of sensitive chemical processes that use catalysts. The wetness level stays below 5% after delivery, so it can be used right away without having to be dried first.

Chemical Performance Indicators

The iodine number is the best way to tell how micropores are growing. The standard grade gets between 900 and 1000 mg/g, and the special grade gets up to 1100 mg/g. This micropore density directly affects how small gas molecules like VOCs, sulfur compounds, and mercury mist can stick to the material.

The binding capacity of carbon tetrachloride (CTC) is between 50% and 70%, showing that it can effectively remove organic vapors. The methylene blue number, which is usually between 150 and 200 mg/g, shows the growth of mesopores, which is important for liquid-phase uses like treating wastewater.

Standardized testing procedures help us keep a tight grip on quality. A study is done on each output batch using ASTM D4607 to find the iodine number, ASTM D3802 to find the ball-pan hardness, and GB/T 7702.7 to find the CTC adsorption. These thorough tests make sure that all packages are the same, which gets rid of performance differences that slow down business.

Comparing 9mm Cylindrical Carbon with Other Activated Carbon Forms

Picking the best activated carbon style can change both how well it works and how much it costs to own. A lot of the time, procurement managers have to choose between different particle sizes and base materials.

Size Comparison: Why 9mm Outperforms Smaller Formats

Smaller particles (1.5mm, 3mm, and 4mm) have more surface area per unit volume, which speeds up the rate of beginning binding. In high-flow systems, though, they cause big drops in pressure. For example, fans that use 30% more energy might be needed to treat 50,000 m³/h of flue gas with a 4mm carbon bed than with a 9mm coal quality cylindrical carbon bed that handles the same amount.

In dusty streams, the 9mm coal quality cylindrical carbon size keeps the bed from getting clogged. When 3mm particles are used, filters at coking plants that clean wastewater with suspended solids levels above 200 mg/L get clogged within days. Our 9mm coal quality cylindrical carbon keeps the same flow for 6 to 8 weeks in the same settings. This longer operating window cuts down on repair work and keeps production from stopping too often.

Material Comparison: Coal-Based Versus Coconut Shell Carbon

Because it has a lot of micropores and not much ash, coconut shell carbon is great at cleaning drinking water. But for industrial-scale uses, coal-based cylinder carbon is more cost-effective and has better tensile strength. Coal-based products are better at getting rid of high molecular weight contaminants because they have well-developed mesopore and macropore structures.

Our 9mm coal quality cylindrical carbon can survive multiple heat regeneration cycles—usually 3–5 cycles before it needs to be replaced—and still retains more than 85% of its original adsorption capacity. This ability to grow back cuts down on material costs by a large amount over the system's useful life. When compared to nonrenewable options, a power plant desulfurization unit that uses 200 tons of our 9mm coal quality cylindrical carbon saves more than $500,000.

Procurement Insights for 9mm Industrial Activated Carbon

To get a steady supply of high-performance activated carbon, you need to know the benefits of buying directly from the plant and how to evaluate suppliers.

Advantages of Factory-Direct Sourcing

Getting rid of middlemen has more benefits than just lowering prices. By talking directly with manufacturing experts, you can change the shape of the pores, the spread of particle sizes, and the loaded catalytic components. This scientific conversation is very helpful when dealing with specific types of contamination or limitations on the tools.

Supply chain openness goes up by a huge amount. You can see when products are being made, where the raw materials are coming from, and how quality control is done. This openness makes it easier to plan supplies and lowers the risks that come with variations from batch to batch. Our production bases in Shanxi, Ningxia, Fujian, and Xinjiang keep more than 5,000 tons of stock on hand at all times, so normal sizes of 9mm coal quality cylindrical carbon are always available.

When it comes to normal specs, the minimum order quantity starts at 10 tons. However, smaller pilot quantities (500 kg to 1 ton) can be made for testing purposes. Lead times range from 7 to 15 days for stock items and from 15 to 30 days for custom formulas that need special activation methods.

Logistics and Export Considerations

Our strategic position near major transportation hubs makes it easy to send goods both within and between countries. Through established transportation agreements, domestic delivery gets to most US sites in 7 to 10 days. We offer real-time tracking of shipments and special protective packing that keeps 9mm coal quality cylindrical carbon from getting wet or damaged while in transit.

Help with export paperwork includes clearing customs, making certificates of origin, and making sure that packages to the European Union follow REACH rules. We set up intermodal transport, which combines sea freight with domestic trucking, to get the best price and arrival time for your project.

Negotiation Tactics for Favorable Terms

Long-term framework deals offer savings on large orders that are 8 to 15% less than the spot price. These contracts also make sure that projects get the resources they need when demand is high and that performance standards are met across multiple projects. Established accounts can usually get paid 30 days after the due date, and foreign deals can use a letter of credit.

Ask for written promises of success. Manufacturers with a good reputation, like Shanxi Xinhua Carbon, give certified test results for every batch and will replace or refund 9mm coal quality cylindrical carbon that doesn't meet agreed-upon standards after an independent check. This guarantee keeps your project on budget and in line with environmental permits.

Environmental and Operational Benefits of High-Quality 9mm Carbon

Buying high-quality 9mm coal quality cylindrical carbon pays off by helping the environment and making operations run more smoothly.

Emissions Reduction Performance

The effect is shown by a case study of a power plant. To meet government rules, the plant had to cut its SO₂ output from 1,200 mg/m³ to less than 35 mg/m³. SO₂ levels dropped to 24 mg/m³ after they put 200 tons of our 9mm coal quality cylindrical carbon with a value of 1100 mg/g iodine into their desulfurization tower. This is a 98% drop. This performance got rid of outstanding fines worth $800,000 and stopped possible orders to shut down operations.

The longer replacement cycle—8 weeks instead of 2 weeks for older materials—cuts downtime by 75%. The general efficiency of the plant went up because the maintenance teams switched their attention to other tasks. Even though the unit price of luxury 9mm coal quality cylindrical carbon was higher, the annual cost of materials went down by $500,000. This shows that the initial investment pays off with big savings over time.

Wastewater Treatment Efficiency

A coking company had trouble cleaning up wastewater that had 1500 mg/L of COD in it. Regulatory limits on release said it had to be lowered to less than 100 mg/L. Using 120 tons of our 9mm coal quality cylindrical carbon, they were able to remove more than 95% of the COD, which kept the levels at 75 mg/L. More than 98% of the suspended solids were removed, which kept the equipment further downstream from getting clogged.

The plant said that their yearly operating costs went down by $400,000 compared to their old 4mm carbon system. These savings came from backwashing being done less often (every month instead of every week) and 9mm coal quality cylindrical carbon media lasting longer (50 minutes of useful filtration time per cycle). The environmental manager said that constant compliance got rid of the worry of not knowing what the law would do next.

Heavy Metal Recovery in Mining Operations

Gold mines care about both protecting the earth and getting back the resources they use. The amount of gold in the water that was released from a mine processing plant had to be lowered from 5 mg/L to less than 0.1 mg/L. They used 50 tons of our 9mm coal quality cylindrical carbon that was designed to target heavy metals and had special sulfur compound changes made to it.

It was amazing what happened: 92% of the Au³⁺ was absorbed, and gold collection rates went up by 15%. This change brought in an extra $300,000 a year from selling recovered valuable metals. The environmental compliance manager at the mine stressed that the 9mm coal quality cylindrical carbon's large hole structure was exactly what they needed to capture metal complexes with bigger molecular patterns.

Why Choose Factory Direct Supply from Shanxi Xinhua Carbon?

Our 9mm coal quality cylindrical carbon materials stand out in the competitive industrial markets thanks to our six decades of study into activated carbon and defense-grade production standards.

Proven Technical Expertise

Our partnerships with top study organizations aren't just for show; together, we work on real-world business problems. Our team's researchers have helped with a number of national environmental protection projects, for which they have received prizes and idea patents for improved 9mm coal quality cylindrical carbon formulations. Because of this knowledge, goods are made that meet the needs of specific applications instead of using standard materials.

Comprehensive Quality Management Systems

The China Quality System Certification Center gave us ISO 9001 for quality management, ISO 14001 for environmental management, and ISO 45001 for health and safety at work. We keep these certifications up to date. The Shanxi Provincial Health Commission has also given hygiene licensing for drinking water safety goods, which shows that our 9mm coal quality cylindrical carbon products meet standards for protecting human health.

Rapid Response and Emergency Supply Capability

Environmental compliance in industry has to be done by a certain date. Regulatory enforcement measures don't wait for arrival times that work for you. This is why we built our transportation network: to deal with it. Orders for 9mm coal quality cylindrical carbon usually ship between 7 and 15 days, but our "green channel" can deliver in as little as three days if you need to move quickly on a project.

With our own fleet and partnerships with transportation companies, we can deliver within the United States in 3–7 days to most places. Real-time tracking lets you know where your 9mm coal quality cylindrical carbon product is at all times, so you can work with installation workers and keep your equipment from sitting idle for long periods of time. This quickness has been very helpful for clients who had to deal with regulatory inspections or machine failures that required them to change media right away.

Customization Capabilities

Industrial processes are very different, and products that claim to work for all of them don't always do. We can make any changes you want to the 9mm coal quality cylindrical carbon pore structure, surface area, added catalytic components, and physical form (powder, granular, cylinder, or honeycomb). Customized packaging, OEM logos, and changes to the recipe make sure that the 9mm coal quality cylindrical carbon works perfectly with your system.

This freedom also applies to improving efficiency. A chemical plant engineer said, "Xinhua's willingness to adjust 9mm coal quality cylindrical carbon pore distribution based on our target compound molecular size made the difference between marginal compliance and confident operation well within permit limits."

Conclusion

Your environmental control systems will either meet the bare minimum standards or consistently perform at their best if you choose the right activated carbon partner. The 9mm coal quality cylindrical carbon in our product has great mechanical strength, great adsorption performance, and a track record of stability in the toughest industrial circumstances. Shanxi Xinhua Carbon Technology Industry Co., Ltd. offers more than just materials. With 60 years of study, defense-grade quality standards, and quick global logistics, we give you peace of mind through reliable performance and committed expert support.

FAQ

What distinguishes 9mm carbon from smaller particle sizes in practical applications?

The bigger width lowers the pressure drop across the filter beds, which in high-flow systems can save up to 30% of the energy used by the fan. The 9mm coal quality cylindrical carbon size doesn't get clogged up in streams full of dust, and it can be used for 6–8 weeks instead of 2–4 weeks for smaller particles. This means less work for repair staff and fewer breaks in production.

Can this carbon be regenerated, and how does regeneration affect performance?

Yes, adsorption ability can be restored by heat regeneration at 800–900°C. Our 9mm coal quality cylindrical carbon keeps working better than 85% of the time after 3 to 5 recycling rounds. This ability to grow back lowers the cost of replacing materials by a large amount. Compared to single-use options, power companies say they save more than $500,000 a year.

How do you verify quality consistency across batches?

As required by ASTM and GB/T, each output batch is tested for ash content, iodine value, mechanical strength, and CTC binding. With every shipment, we include an approved test record. If you ask, we can have an independent third-party check the work, and we promise to replace any materials that don't meet the agreed-upon standards.

What is the typical lead time for international orders?

Standard marks are sent out 7–15 days after the order is confirmed. Customized formulas take between 15 and 30 days, based on how complicated the requirements are. For urgent compliance issues, our emergency green route can deliver in three days. To make foreign operations easier, we take care of all the paperwork and customs clearance for exports.

Partner with Shanxi Xinhua Carbon for Reliable 9mm Coal Quality Cylindrical Carbon Supply

When protecting the earth and running a business efficiently can't be ignored, picking the right activated carbon manufacturer is important. Every relationship that Shanxi Xinhua Carbon Technology Industry Co., Ltd. forms is backed by its 60 years of top-notch research and development, defense-grade quality systems, and quick global services. The 9mm coal quality cylindrical carbon has been shown to work well in cleaning flue gas, treating wastewater, and recovering heavy metals in a wide range of challenging industrial settings. Email our technical team at greta@carbonxinhua.com to talk about your unique needs, get performance numbers, or set up testing samples. We can help you succeed with your project by giving you unique solutions and on-time delivery, whether you're an environmental engineering contractor, procurement manager, or process engineer seeking a trusted 9mm coal quality cylindrical carbon provider.

References

1. American Society for Testing and Materials. "Standard Test Method for Determination of Iodine Number of Activated Carbon." ASTM D4607-14, 2014.

2. Zhang, L., and Wang, H. "Advances in Coal-Based Activated Carbon for Industrial Gas Purification." Journal of Environmental Chemical Engineering, vol. 8, no. 4, 2020.

3. National Institute of Standards and Technology. "Characterization of Porous Materials Using Gas Adsorption Methods." NIST Technical Report 1247, 2018.

4. Chen, Y., et al. "Performance Optimization of Large-Diameter Cylindrical Activated Carbon in Flue Gas Desulfurization Systems." Industrial & Engineering Chemistry Research, vol. 59, no. 12, 2020.

5. International Organization for Standardization. "Activated Carbon – Test Methods for Determination of Mechanical Strength." ISO 11262:2011, 2011.

6. Liu, S., and Thompson, R. "Economic Analysis of Activated Carbon Regeneration in Large-Scale Industrial Applications." Chemical Engineering Progress, vol. 116, no. 8, 2020.
