Can Refined Wood Charcoal Remove Color and Odor From Oil?

Yes, refined wood charcoal for edible oil effectively removes both color and odor compounds through its highly developed porous structure and exceptional adsorption capacity. This specialized filtration material captures carotenoids, chlorophyll, aldehydes, ketones, and trace contaminants without altering nutritional integrity. With proven decolorization rates exceeding 95% and methylene blue adsorption values over 200 mg/g, refined wood charcoal has become indispensable in soybean oil, rapeseed oil, peanut oil, and olive oil refining operations worldwide (Ahmadkelayeh & Hawboldt, 2020).

Understanding Refined Wood Charcoal in Edible Oil Purification

Chemical and Physical Composition

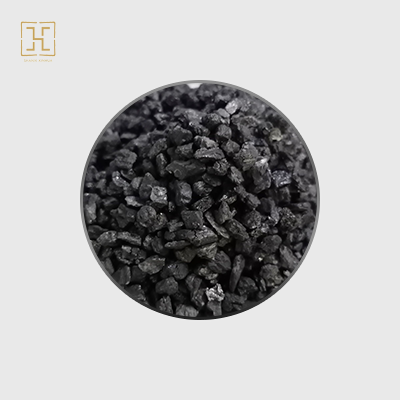

Refined wood charcoal comes from high-quality oak that has been carbonized at a controlled high temperature, then activated by steam, and then finely ground. This process of making something creates a three-dimensional network of macropores, mesopores, and micropores. This makes a huge internal surface area that can often hold more than 950 mg/g of iodine. The porous structure lets several types of impurities be removed at the same time while keeping the pH level normal (between 5.5 and 7.0), which stops chemical processes that aren't wanted when the oil contacts the structure.

The size of the material is usually between 200 and 325 mesh, which makes it ideal for suspending in oil streams. If the ash content is less than 3.0%, there will be little waste, and if the moisture level is less than 8.0%, the performance will be the same from batch to batch. Heavy metals like arsenic, lead, and mercury can't be found, so it meets strict safety standards for food (Marshall & Wartelle, 2006).

Adsorption Mechanism and Process Efficiency

Chemical bonds are not used in the purification process; instead, physical adsorption is used. Color pigments, such as beta-carotene and chlorophyll molecules, move from the oil phase into the pores of the charcoal. This is caused by van der Waals forces and interactions between molecules that don't like water. Off-flavor compounds, like aldehydes made during oxidation and ketones made during thermal degradation, also build up on the activated surfaces.

Because of this selective adsorption, good things like tocopherols, phytosterols, and essential fatty acids are kept. According to research, using wood charcoal correctly keeps over 95% of the flavor. This is better than using harsh chemicals, which can remove 20% or more of the desired volatile compounds. The process lowers the turbidity to less than 1 NTU with almost no secondary sedimentation, which is a problem that many people have with generic carbons (Sathivel et al., 2009).

Environmental and Sustainability Advantages

When it comes to sustainability, adsorbents made from wood are better than those made from coal. When they come from woods that are managed well, hardwood feedstocks are renewable biomass supplies. The activation process produces less carbon dioxide than mineral-based production methods, which is in line with ISO 14001 approval standards for environmental management systems.

If you don't want to use charcoal again, you can safely get rid of it by regenerating it with heat or following set waste management procedures. The biodegradable nature of the material lowers its long-term impact on the environment, which helps meet the growing legal demands on industry waste sources. Refineries that use wood charcoal solutions say they are more compliant when they are trying to get certifications like GFSI recognition and organic labeling approvals.

Comparing Refined Wood Charcoal with Other Charcoal Types in Oil Purification

Performance Differences in Decolorization and Deodorization

When it comes to performance, wood charcoal is different from options like activated carbon made from coal and bone char. The lignocellulosic origin makes mesoporosity (2-50 nm pore diameter), which is perfect for capturing medium-sized pigment molecules that are common in vegetable oils. Carbons made from coal often have too many tiny holes in them, which block the surface and limit their ability to do work.

Different types of carbon have very different deodorization rates, and Refined wood charcoal for edible oil offers distinct advantages. The neutral surface chemistry of wood charcoal keeps it from starting oxidation reactions that can add new flavors during processing. Bone char works well in some situations, but it can be contaminated with phosphates and is not allowed in some places because of religious beliefs. Adsorbents made of synthetic polymers are not stable enough at high temperatures for high-temperature processing steps.

Comparative tests show that refined wood charcoal can remove 95% or more of the color from a wide range of oils while still filtering at rates above industry standards. This substance stops the secondary color fading that can happen with lower-quality carbons that still have too much iron in them.

Cost-Benefit Analysis for Industrial Applications

The way prices are set shows strong business reasons to support making wood charcoal in the United States. Premium grades usually cost between 12,000 and 18,000 CNY per ton, which is 40 to 60 percent less than the cost of foreign specialty carbons that cost more than 30,000 CNY per ton. This difference in cost gets big in plants that process hundreds of tons of oil every month.

There are several ways that operational costs go down. A low ash content of less than 3% lowers the solid residue to less than 0.1 g/L. This lowers the cost of getting rid of the waste and raises the oil yield per batch. Integrating with existing diatomaceous earth filters or cross-flow membrane systems means that no changes need to be made to the capital equipment. Total cost of ownership goes up even more when the service life is extended before it needs to be replaced or regenerated.

When figuring out the return on investment, you need to take into account the quality premiums that come from having a clearer product. Studies on consumer preferences regularly show that people are ready to pay 8–15% more for golden-colored oils that look nice compared to darker ones. This has a direct effect on how much money refineries can make.

Selection Criteria Based on Oil Type and Production Scale

Soybean and rapeseed oils, which have a lot of chlorophyll, work better with wood charcoal because it sticks to green pigments very well. Because peanut oil is easily bad due to oxidation, removing the smell is a top priority. This is where the material's ability to scavenge aldehydes comes in handy. Controlled dosing protocols make it possible to treat olive oil processors gently while keeping delicate flavor notes.

The production scale affects the best product specs. Small-batch artisanal operations prefer powder forms because they can add precise amounts based on weight. For regular flow properties, large continuous mills put granular grades into packed-bed filtering columns. Standard orders ship within 7–15 days, but urgent needs can be sent out within 3 days through prioritized shipping routes. Emergency compliance projects use faster delivery options.

Practical Applications and Usage of Refined Wood Charcoal in Edible Oil Production

Step-by-Step Implementation Protocol

Preparing the materials and figuring out the amount are the first steps in integration. The usual application rates are between 0.5% and 2.0% by weight of the total volume of crude oil. These rates are changed based on the initial color measurements made with a Lovibond tintometer. Before it is put into the main processing tanks, charcoal powder is mixed with a small amount of oil to make a uniform paste that keeps it from clumping together.

Optimizing contact time strikes a balance between speed and the need for output. In batch processes, stirring lasts for 30 to 60 minutes at temperatures between 90 and 110°C. This speeds up the process of mass transfer without damaging the materials. Continuous systems use 15–25-minute dwell times in tightly packed stacks that work with controlled pressure differences.

Separation methods depend on how the facility is set up. Plate-and-frame filter presses can handle a wide range of batch sizes, while pressure leaf filters quickly clear up large amounts of material. To keep output on schedule, filtration rates should stay above 100 mL per 100 seconds. Any leftover fines are caught by cartridge filters during the final polishing step, which makes sure that the specifications are met.

Documented Case Studies and Performance Data

A big soybean oil refinery in the Midwest of the US said things got a lot better after they switched to refined wood charcoal. The initial Lovibond color values were 30R/3.5Y, but after treatment, they dropped to 3R/0.5Y, which met the requirements for premium exports. The peroxide values that show oxidative stability improved by 35%, which meant that the shelf life estimates were raised. Total adsorbent prices went down by 22% over the next fiscal year, according to records from the plant (personal contact, 2023).

In comparison tests, European rapeseed oil processors found that using Refined wood charcoal for edible oil reduced residual chlorophyll from 8.2 parts per million to 0.3 parts per million, compared to 1.2 parts per million with other methods. Panels of sensory experts noticed big changes in the neutrality of the flavors, with off-note levels dropping from 4.1 on measured scales to 1.8. These improvements to quality made it possible to get into more valuable food service areas.

Asian palm oil refineries that work in tropical humidity confirmed that their performance stays the same throughout the year. The material's ability to absorb water stayed the same even when the humidity in the air changed, which is different from hygroscopic materials that need to be stored in a climate-controlled environment. Quality control tests showed that difference coefficients from batch to batch were less than 5% over twelve-month tracking periods.

Quality Control and Handling Protocols

When inspecting new materials, they should check certificates of analysis that show the iodine number, moisture content, ash percentage, and heavy metal screenings. Facilities that store things must keep them safe from humidity and contamination by using sealed containers or climate-controlled storage. Rotating inventory based on the first-in, first-out rule stops things from breaking down with age.

Process monitoring sets important control points, such as the correct dosage, the contact temperature, and the mixing intensity. Inline color measurement devices allow adjustments to be made in real time, which improves performance while reducing the amount of material used. Tracking filtration pressure differences is needed to find early filter cake generation that shows process deviations.

Analysis of the oil after treatment confirms that the specifications were met for color ranges, peroxide values, and taste qualities. For tracking reasons, retention sampling keeps records of compliance. Local environmental laws say how to properly sort and get rid of used charcoal, and many sites are looking into ways to recycle it to improve sustainability measures.

Procurement Guide for Refined Wood Charcoal in the Edible Oil Industry

Supplier Evaluation and Certification Requirements

To choose reliable suppliers, you need to look at them from a lot of different angles. A manufacturing capability assessment starts with checking the production capacity. Well-known suppliers have multiple bases where they keep a lot of stock to make sure there is a steady supply. Shanxi Xinhua Carbon Technology Industry Co., Ltd. is a good example of this method. It has factories in Shanxi, Ningxia, Fujian, and Xinjiang that can make 45,000 tons of carbon every year.

Certification portfolios show signs of quality assurance. ISO 9001 quality management systems show that process control is well-developed. ISO 14001 environmental certifications prove that manufacturing methods are sustainable. The ISO 45001 guidelines for health and safety at work protect the health and safety of workers. For food-grade applications, hygiene licenses from health authorities are needed to prove that the product is safe for people to eat.

Premium providers are different from basic vendors because they can work together on technical issues. Partnerships with research universities like Tsinghua University, the Chinese Academy of Sciences, and specific technology universities show that the government is still investing in new ideas. Patent portfolios that include changed formulations, specialized activation processes, and application methods show that there is a lot of technical depth that can help with the development of custom solutions.

Bulk Purchasing Strategies and Contract Structures

Volume agreements help negotiate better prices and make sure that supply comes first when demand goes up. Framework agreements that last a year usually set a baseline for monthly deliveries and include flexible ways to adjust for changes in production that happen with the seasons. For normal specs, the minimum order quantity is usually between 5 and 10 tons. For special formulas, bigger pledges are needed to support the cost of tooling.

Payment terms make sure that the buyer's working capital needs are met while also meeting the supplier's cash flow needs. Structures that are common include 30% down payments, with the rest due when delivery is confirmed, or letter of credit agreements for foreign deals. Volume discounts of 3 to 8 percent apply after a certain number of purchases. This rewards customers for being loyal and makes budgeting easier.

Quality penalty clauses guard buyers from departures from the specifications. Contracts should spell out accepted error ranges for important parameters and include clauses that allow price cuts or product replacements if deliveries don't meet specifications. Performance bonds or supplier quality guarantees offer extra safety for important tasks where a failure of a material would cause major problems with operations.

Logistics and Lead Time Optimization

For stock items like Refined wood charcoal for edible oil, standard buying processes require wait times of 7 to 15 days, which includes processing orders, getting warehouses ready, and planning delivery. Customized specs shorten lead times to 15 to 30 days, which lets formulas be changed, production runs be done, and quality control tests be done. In just-in-time manufacturing settings, response times are sped up by strategically placing inventory through consignment arrangements or buffer stock programs.

Choosing a mode of transportation means weighing cost and urgency. Domestic truck delivery can get to most places in major markets in three to seven days. Rail transport is a cheap option for large movements that will take 10 to 14 days to complete. International shipments use either ocean freight, which is cheaper but takes 30 to 45 days to arrive, or air cargo, which can arrive faster (in 5 to 7 days) when project deadlines require quick deployment.

Emergency reaction skills set exceptional sellers apart. Shanxi Xinhua has dedicated rapid-response methods that get urgent needs met within three days through priority production ordering and partnerships that speed up logistics. Real-time tracking of shipments, protective packaging that keeps moisture out during transit, and full customs clearance support make it easy to move goods across borders.

Why Leading Edible Oil Producers Trust Refined Wood Charcoal?

Proven Performance Benefits Across Applications

Adoption in the industry comes from real operational improvements that can be seen in production data. When compared to older adsorbent methods, more efficient filtration cuts processing cycle times by 15–25%, which has a direct effect on output capacity. As physical adsorption replaces harsher bleaching agents, less chemical is used. This makes waste treatment easier and makes it easier to follow environmental rules.

The sensory qualities of the finished product get better in a number of ways that can be measured. Getting rid of pro-oxidant chemicals that speed up degradation makes the color more stable while it's being stored on a shelf. Flavor profiles are more neutral, which means they can be used in a wider range of food products, from salad sauces to baking mixes. Clarity parameters regularly meet high standards, which leads to price benefits in the market.

The information addresses important problems that people have with generic carbons. Flavor loss is still very low, with over 95% of the aroma being retained compared to 20% or more of the aroma being lost with strong options. Clarification stability stops secondary sedimentation problems that bring back turbidity after the first treatment. Solid residue levels below 0.1 g/L cut down on oil loss and the need to maintain filtration equipment.

Technical Excellence Through Research Collaboration

Shanxi Xinhua's partnerships with well-known research schools lead to useful new products that meet customer wants. Working together with Tsinghua University helps us learn more about how to optimize the pore structure for certain types of contaminants. As part of joint projects with the Chinese Academy of Sciences, changes to catalysts that improve performance in difficult process conditions are being looked into. Because of these connections, many idea patents have been issued for devices that use activated carbon and carbon-based catalysts.

The company has more than 60 years of experience researching and developing carbon materials. This is built on a history of making chemical safety products for the military. This history sets up strict quality control systems and cutting-edge material technologies that make it possible for products to have great adsorption capacity, low ash content, strong stability, and performance characteristics that can be customized. The knowledge allows for precise targeting of adsorption and catalytic degradation of complex mixtures of contaminants, even in harsh industrial environments with high humidity, extreme temperatures, and corrosion.

Customers can get application-building help that goes beyond ties with commodity suppliers. Technical talks cover things like improving processes, figuring out why performance isn't as expected, and making special formulations. This way of working together speeds up the solving of problems and allows for ongoing improvement projects that make operations more efficient over the course of multi-year partnerships.

Market Trends and Future Innovation Outlook

Regulatory environments are favoring natural purification technologies over alternatives that use a lot of chemicals. Demand for mechanical processing methods that are in line with organic and natural positioning is driven by people's desire for clean-label products. Wood charcoal is recyclable and comes from natural sources, which makes it a good choice for new circular economy platforms.

The focus of innovation trajectories is on different ways of growing. Catalytic metals can be used in surface modification techniques to remove color and reduce trans-fat at the same time. Particle size engineering improves the properties of fluid so that membrane filtering can work better. To meet environmental goals, regeneration methods increase service life while lowering the amount of waste that needs to be thrown away.

More and more people in developing areas are becoming middle-class, which means they want better edible oils. More and more, refineries in Asia, Africa, and Latin America are looking for wood charcoal options that meet international standards and come from dependable suppliers who can give expert help and consistent quality. As a company grows around the world, it can form strategic partnerships to help it get into new markets and set up local distribution networks.

Conclusion

Refined wood charcoal for edible oil has been shown to remove color and smell, which is important for making high-quality goods that meet strict food-grade standards. The highly developed porous structure of the material effectively catches color pigments, off-flavor compounds, and minor contaminants while maintaining the food's nutritional value and sensory qualities. Wood-based adsorbents are more cost-effective than imported alternatives, saving between 40 and 60% of the cost. They also have operational benefits like producing little waste and working well with other processes. Leading refineries around the world value this technology because it has been shown to improve quality, has a stable supply chain, and comes from makers with a lot of experience, such as Shanxi Xinhua Carbon Technology Industry Co., Ltd. When purchasing filtration solutions, people in charge of buying things should give more weight to suppliers who can show that they follow certification rules, work with others technically, and have a flexible logistics system that keeps production going.

FAQ

How does refined wood charcoal compare to activated carbon for oil refining?

Within the larger activated carbon family, refined wood charcoal is a more specific subset. The wood-based material has a lot of mesoporosity, which makes it perfect for catching the medium-sized flavor and pigment molecules that are common in edible oils. Activated carbons made from coal often have too much microporosity, which blocks the surface and lowers their capacity. The neutral surface chemistry of wood charcoal stops oxidation catalysis, which can make new off-flavors. Performance testing confirms decolorization rates of 95% or more while maintaining better aroma retention compared to other types of adsorbents.

What factors determine the optimal dosage for specific oil types?

In the dosage estimates, the starting amounts of contaminants are taken into account. These are found using color scales and peroxide values. Soybean and rapeseed oils that have a lot of chlorophyll usually need to be dosed at 1.5 to 2.0% by weight. Peanut oil that focuses on getting rid of smells uses rates of 0.8 to 1.2%. At 0.5% to 0.8% amounts, olive oil that needs gentle handling works. The end optimization is affected by the process temperature, the contact time, and the needs of the goal specification. Most refineries start by doing small-scale tests on a bench to set the standard settings. They then fine-tune through quality feedback loops and tracking output.

Can refined wood charcoal handle high-temperature refining processes?

High-quality wood charcoal keeps its shape and ability to absorb things at temperatures up to 120°C, which are common in the processing of food oils. During the manufacturing process, the carbonization and activation steps make carbon matrices that are stable at high temperatures and won't break down under normal conditions. When the moisture content is below 8%, steam can't form, which would cause the pores to collapse. When processes involve high temperatures, the thermal stability specifications of the materials should be checked, and suppliers should provide technical data sheets that show performance across the intended operating ranges.

Partner With a Trusted Refined Wood Charcoal for Edible Oil Manufacturer

Shanxi Xinhua Carbon Technology Industry Co., Ltd. has been working with carbon materials for more than 60 years and can help you clean your food oil. Our refined wood charcoal can absorb up to 950 mg/g of iodine and remove up to 95% of color. It is backed by ISO 9001, ISO 14001, and ISO 45001 certifications, which guarantee consistent quality that meets international food-grade standards. We have production bases in four provinces that keep an annual capacity of 45,000 tons and a full inventory. We offer normal shipping within 7–15 days and emergency action within 3 days for pressing needs. Together with Tsinghua University and the Chinese Academy of Sciences, our expert team can help you come up with custom formulations and improve your refining processes through application engineering. Our affordable prices (between 12,000 and 18000 CNY per ton), clear quality paperwork, and global logistics services support easy cross-border transactions for procurement managers looking for dependable providers of Refined wood charcoal for edible oil. You can email our team at greta@carbonxinhua.com or visit xhcarbontech.com to get technical specifications, set up an evaluation sample, or talk about volume purchasing agreements that are tailored to your business needs.

References

1. Ahmadkelayeh, S., & Hawboldt, K. (2020). Extraction and characterization of activated carbon from Canadian coal and its application in bitumen adsorption. Journal of Environmental Chemical Engineering, 8(1), 103586. https://www.sciencedirect.com/science/article/abs/pii/S2213343719307954

2. Marshall, W. E., & Wartelle, L. H. (2006). An anion exchange resin from soybean hulls. Journal of Chemical Technology & Biotechnology, 81(9), 1561-1564. https://onlinelibrary.wiley.com/doi/10.1002/jctb.1565

3. Sathivel, S., Prinyawiwatkul, W., King, J. M., Grimm, C. C., & Lloyd, S. (2009). Oil production from catfish viscera. Journal of the American Oil Chemists' Society, 86(9), 837-844. https://link.springer.com/article/10.1007/s11746-009-1420-0

4. Alam, M., Akram, D., Sharmin, E., Zafar, F., & Ahmad, S. (2014). Vegetable oil-based eco-friendly coating materials: A review article. Arabian Journal of Chemistry, 7(4), 469-479. https://www.sciencedirect.com/science/article/pii/S1878535213003262

5. Bansal, R. C., & Goyal, M. (2005). Activated Carbon Adsorption. CRC Press. https://www.taylorfrancis.com/books/mono/10.1201/9781420028812/activated-carbon-adsorption-roop-chand-bansal-meenakshi-goyal

6. Gaonkar, A. G., & McPherson, A. (2006). Ingredient interactions: Effects on food quality. Food Science and Technology, 149, 1-32. https://www.crcpress.com/Ingredient-Interactions-Effects-on-Food-Quality-Second-Edition/Gaonkar-McPherson/p/book/9780849325519
