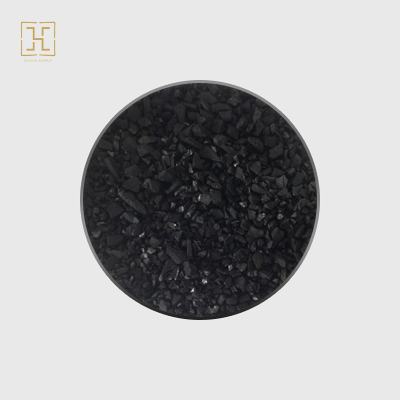

20*50 Mesh Coal Quality Briquette Crushing Activated Carbon with High Adsorption Capacity

When discussing advanced filtration and purification solutions in industrial environments, 20*50 mesh coal quality briquette crushing activated carbon stands out as a specialized adsorbent designed to overcome persistent operational challenges. This premium-grade 20*50 mesh coal quality briquette crushing activated carbon is manufactured by pulverizing high-quality bituminous coal into fine powder, blending it with specialized binders, and forming briquettes under high pressure before undergoing carbonization and steam activation. The final 20*50 mesh coal quality briquette crushing activated carbon product is crushed and screened to achieve a precise 2050 mesh size range (0.30mm to 0.85mm), resulting in a material with uniform pore distribution, excellent adsorption performance, and significantly improved mechanical hardness compared with traditional coal-based activated carbons. This advanced production process enables **2050 mesh coal quality briquette crushing activated carbon** to effectively address critical issues such as structural fragility, excessive fines generation, and "black water" contamination in high-flow filtration systems. With its stable particle structure, reliable filtration performance, and consistent quality, 20*50 mesh coal quality briquette crushing activated carbon provides a dependable solution for demanding industrial purification applications. The superior durability and adsorption characteristics of 20*50 mesh coal quality briquette crushing activated carbon make it suitable for systems requiring long service life, reduced maintenance, and efficient contaminant removal.

Understanding 20*50 Mesh Coal Briquette Properties and Their Impact on Crushing and Adsorption

How activated carbon works in different business settings depends a lot on the mesh size standard. Procurement professionals can make better decisions when they know the technical differences between particle sizes.

Particle Size Distribution and Its Functional Significance

The 2050 mesh number means that particles can pass through a 20-mesh screen but stay on a 50-mesh screen. This makes granules that are between 0.30 mm and 0.85 mm in size. This range of sizes meets a number of different needs. Larger particles, like those with a 1240 mesh size, have a lower pressure drop but slower adsorption kinetics. Ultra-fine particles, below 50 mesh, have a fast contact time but can cause too much backpressure in fixed-bed systems. The 20*50 mesh activated carbon is in a good spot because it has a higher external surface area and a lower hydraulic resistance. This makes it faster at absorbing substances.

Mechanical Strength Through Briquetting Technology

Activated carbons that are traditionally made from coal often have structural flaws that allow particles to break down and create fines during handling and backwashing processes. The briquetting process changes the structure of the material in a fundamental way. Manufacturers make thick, uniform particles with a ball pan hardness of over 95% by putting binders on top of coal powder and pushing it down under high pressure. This better mechanical integrity stops it from breaking down too soon, keeps the bed's porosity, and stops "black water" from escaping into treated streams.

Adsorption Capacity Enhancement

After briquetting, the steam activation process makes a very developed pore structure with iodine values between 900 and 1,100 mg/g. This large micropore volume means that it can hold a lot of small organic molecules, volatile organic compounds, and trace contaminants. Controlled briquetting creates a regular pore distribution that makes the whole carbon bed work the same way. This is a big benefit for uses that need to know the breakthrough curves and the results of the cleaning process.

Activated Carbon Briquettes: Production, Properties, and Crushing Techniques

The quality of the briquette-crushing activated carbon depends on how well it is made, especially in difficult industrial settings where consistent performance has a direct effect on how efficiently the business runs.

Raw Material Selection and Processing

Premium activated carbon briquettes start with bituminous coal that has been carefully chosen to have a high carbon content and low ash levels. Shanxi Xinhua Carbon Technology Industry Co., Ltd. uses defense-grade quality control systems and more than 60 years of research and development experience to make sure that our raw materials are always the same. The coal is ground up until the particles are smaller than 200 mesh, making a smooth powder base. The powder is then mixed with special organic binders that break down completely during carbonization, leaving only a small amount of ash behind.

Briquetting and Activation Process

When the coal and binder mixture is pressed together under pressures higher than 10 tons per square centimeter, dense briquettes in the shape of cylinders or pillows are formed. These briquettes are carbonized at temperatures between 500°C and 700°C in places with little air. This gets rid of the volatile parts while keeping the structure strong. The next step is steam activation, in which ultra-hot steam at 800–1000°C selectively oxidizes carbon atoms, making a complex network of pores. This kind of controlled activation creates micropores (less than 2nm) for gas-phase binding and mesopores (2–50nm) for liquid-phase use.

Crushing and Screening Methodology

To protect the carefully engineered pore structure of 20*50 mesh coal quality briquette crushing activated carbon, post-activation crushing requires specialized equipment and precise processing techniques. First, jaw crushers are used to break the activated carbon material into smaller pieces, followed by roller mills that gently separate the briquettes along their natural fracture lines instead of excessively grinding them into fine powder. After crushing, vibrating screens classify 20*50 mesh coal quality briquette crushing activated carbon particles into accurate mesh ranges to ensure consistent size distribution. ASTM D2862 standards help verify that 20*50 mesh coal quality briquette crushing activated carbon maintains the required particle size specification with no more than a 5% deviation from the target range. This controlled crushing process preserves the mechanical strength, adsorption properties, and structural integrity of 20*50 mesh coal quality briquette crushing activated carbon, ensuring reliable performance and extended service life in filtration systems with variable operating conditions. The gentle processing method allows 20*50 mesh coal quality briquette crushing activated carbon to maintain high hardness while providing stable flow characteristics and efficient contaminant removal for demanding industrial applications.

Comparative Analysis: 20 Mesh vs 50 Mesh Coal Briquettes and Activated Carbon Briquette Performance

Buying choices are better when they are based on realistic performance comparisons that match product specs with operational needs in a variety of business settings.

Adsorption Kinetics and Contact Time Requirements

When compared to coarser grades like 830 mesh, 2050 mesh carbon has much fewer internal diffusion pathways because its particles are smaller. Contact times may be limited to seconds in situations like ultrapure water cleaning for making medicines or electronics. The 20*50 mesh size allows for fast absorption, catching small amounts of organic contaminants before they leave the treatment tank. The results of tests show that carbon tetrachloride (CTC) has an activity level between 50 and 70%. This means that it can strongly adsorb gases and is good for getting rid of VOCs in respirator cartridges and other air filtration systems.

Pressure Drop Considerations

Because there is less empty space between the meshes, the pressure drop across fixed-bed adsorbers is naturally larger for smaller mesh sizes. When using 2050 mesh activated carbon, systems usually need pumps with 15–25% higher head pressure than when using 1240 mesh. But the extra energy spent on pumping pays off by better removing contaminants and longer bed life. This is because the stronger bed prevents the buildup of fines that would otherwise speed up pressure loss over time.

Economic and Operational Trade-offs

Although 20*50 mesh coal quality briquette crushing activated carbon may cost approximately 10–15 percent more than coarser grades, the total cost of ownership is often more favorable because of its improved performance and longer service life. The lifecycle cost of 20*50 mesh coal quality briquette crushing activated carbon is reduced through lower carbon consumption per unit of contaminant removed, fewer filter replacements due to higher mechanical strength, and improved regeneration efficiency because fewer fines are lost during thermal reactivation. When purchasing 20*50 mesh coal quality briquette crushing activated carbon in bulk quantities, procurement managers should consider the apparent density, typically around 450–550 g/L, when calculating transportation and logistics expenses. The compact structure of 20*50 mesh coal quality briquette crushing activated carbon allows more efficient packing compared with irregularly shaped carbon materials, helping reduce freight costs and improve storage efficiency. By evaluating both initial purchase price and long-term operational benefits, buyers can recognize the value advantage of 20*50 mesh coal quality briquette crushing activated carbon in industrial filtration and purification systems. The consistent quality, durability, and efficient adsorption performance of 20*50 mesh coal quality briquette crushing activated carbon make it a cost-effective choice for applications requiring reliable contaminant removal and extended operating cycles.

Procurement Considerations for High-Quality 20*50 Mesh Coal and Activated Carbon Briquettes

In strategic sourcing, you have to look at more than just the unit price of a seller. You have to look at things like quality assurance, the reliability of the supply chain, and the supplier's expert support skills.

Certification and Quality Documentation

Activated carbon suppliers with a good reputation keep up with ISO 9001 standards for quality management, ISO 14001 standards for environmental protection, and ISO 45001 standards for occupational health. For treating water in cities, make sure the carbon passes the requirements of AWWA B604 and has NSF/ANSI 61 approval, which shows that it doesn't release harmful chemicals into drinking water. Shanxi Xinhua Carbon Technology Industry Co., Ltd. has all the necessary licenses and follows strict quality standards that were created through partnerships with Tsinghua University and the Chinese Academy of Sciences. For each package, you should ask for a Certificate of Analysis that lists the ash content (which should be less than 12%), the moisture content, the hardness measures according to ASTM D3802, and the iodine number and methylene blue tests that prove the material's ability to absorb water.

Supply Chain Stability and Inventory Management

Large-scale factories can't handle material shortages that cause problems with their production schedules. Check out providers based on how much they can produce, how much inventory they have, and where their factories are located. Our company has various production bases in Shanxi, Ningxia, Fujian, and Xinjiang. Together, they produce more than 45,000 tons of goods every year, which means that we always have enough of our core products in stock. Customized formulations take 15 to 30 days to deliver, while standard orders take 7 to 15 days to ship. When there is an emergency, special "green" routes speed up the buying process, and important packages are sent out within 72 hours. This multi-base production plan gives you a backup in case something goes wrong in your area, and it puts your goods closer to major transport hubs so it can be delivered faster.

Technical Collaboration and Customization Services

In industrial settings, adsorption solutions often need to be customized to address specific contaminants and operating conditions. Suppliers of 20*50 mesh coal quality briquette crushing activated carbon should have strong research and development capabilities and the ability to collaborate with customers on customized formulations. Our expert team works closely with clients to optimize 20*50 mesh coal quality briquette crushing activated carbon by adjusting pore size distribution, modifying surface chemistry through specialized treatments, or incorporating catalytic components to improve the breakdown of difficult-to-remove compounds. With advanced technical experience in modified activated carbon and high-specific-surface-area carbon-based catalysts, we provide tailored solutions based on different industrial requirements. The product forms of 20*50 mesh coal quality briquette crushing activated carbon can be customized into various structures, including powder, granular, columnar, and honeycomb formats, allowing flexible integration into different purification systems. This adaptability makes 20*50 mesh coal quality briquette crushing activated carbon an effective choice for customized equipment designs and applications requiring strict environmental compliance. By combining precise manufacturing technology with professional technical support, 20*50 mesh coal quality briquette crushing activated carbon delivers reliable adsorption performance, optimized contaminant removal, and long-term operational efficiency for demanding industrial applications.

Best Practices to Optimize Briquette Crushing and Maximize Adsorption Capacity

Operational excellence includes more than just choosing the right materials. It also includes handling, storing, and designing systems in a way that keeps the performance of activated carbon high.

Pre-Installation Preparation and System Design

Before using 20*50 mesh activated carbon, make sure to rinse it well to get rid of the dust that was made during shipping and handling. Use drinkable or deionized water at flow rates 50% higher than normal until the turbidity of the runoff falls below 1 NTU. This step of pre-wetting also removes air from the pores, which makes sure that the material can absorb things right away. Make sure that the ships have enough freeboard (at least 50% of the expansion volume) to allow for backwashing, which should happen when the pressure drop reaches 50% or at regular times determined by the amount of contamination. When distribution systems are the right size, they stop channeling and make sure that the flow is even across the whole carbon bed.

Performance Monitoring and Replacement Criteria

Set up starting points for measuring important performance signs, such as the time it takes for specific contaminants to reach the surface, the drop in pressure at normal flow rates, and the quality parameters of the effluent. Monitoring on a regular basis finds capacity exhaustion before treatment fails. Quantitative breakthrough data can be obtained from analytical methods like gas chromatography for VOCs or total organic carbon analysis for water-based uses. Plan to replace the carbon when its adsorption capacity drops to 70–80% of its original level. This is because the last 20–30% of capacity often runs out very quickly. For systems that deal with different amounts of contaminants, you might want to use spent carbon regeneration programs that bring back 85–90% of the original capacity while lowering the cost of the materials.

Sustainable Operations and Waste Management

As businesses try to be more environmentally friendly, environmental responsibility is becoming a bigger factor in their buying choices. If you have used activated carbon that has non-hazardous adsorbates on it, you can heat it up and recover the carbon matrix for more uses. Build relationships with specialized regeneration centers that can handle handling briquette-crushing activated carbon in a way that keeps the hardness qualities. Another option is for spent carbon to be used as extra fuel in cement kilns or to be disposed of in a way that follows local rules. Keep track of how you handle trash so that you can meet the requirements for environmental compliance and corporate sustainability reporting.

Conclusion

The high level of technical expertise required for producing 20*50 mesh coal quality briquette crushing activated carbon comes from decades of advancement in materials science and industrial manufacturing practices designed to solve complex purification challenges. Due to its engineered pore structure, excellent mechanical strength, and rapid adsorption kinetics, 20*50 mesh coal quality briquette crushing activated carbon plays an important role in various applications, including ultrapure water production, industrial filtration, and VOC capture in protective equipment. Successful procurement of 20*50 mesh coal quality briquette crushing activated carbon requires a clear understanding of how supplier capabilities, particle size control, and production methods align with specific business requirements. By cooperating with experienced manufacturers that provide comprehensive technical support, strict quality management, and flexible supply solutions, industrial users can achieve stable access to 20*50 mesh coal quality briquette crushing activated carbon while reducing total ownership costs and improving environmental performance. The consistent quality and reliable performance of 20*50 mesh coal quality briquette crushing activated carbon make it a valuable purification medium for demanding industrial applications that require efficiency, durability, and long-term operational stability.

FAQ

What distinguishes briquette-crushing activated carbon from standard coal-based carbons?

In the briquetting process, binders are mixed with coal powder and pressed under high pressure before it is activated. This makes particles with even hole distribution and a ball pan hardness of more than 95%. This gets rid of the structural weakness that comes with directly crushed coal carbons, which stops them from breaking down too soon and causing "black water" problems in filter systems.

Why choose 2050 mesh over coarser 1240 mesh for industrial applications?

Because the internal diffusion paths are shorter, the 20*50 mesh size allows for faster adsorption. This makes it perfect for systems with short contact times, such as pharmaceutical water polishing or VOC capture in respirator capsules. Even though it causes a bigger drop in pressure, the better ability to remove contaminants and longer bed life make it worth the money.

How does mesh size affect thermal regeneration of spent activated carbon?

Because briquette-crushing carbon has a high mechanical strength, it actually increases regeneration yields by lowering the production of fines during thermal reactivation cycles at 700–850°C. When properly renewed, 20*50 mesh carbon can adsorb 85–90% of what it could do before.

What quality tests should procurement managers require from suppliers?

Check the particle size distribution according to ASTM D2862 (less than 5% outside the standard), the hardness according to ASTM D3802, the iodine value according to ASTM D4607, and the methylene blue binding data. For uses with drinkable water, you need to make sure it meets AWWA B604 standards and has NSF/ANSI 61 leaching approval.

Partner with a Trusted Activated Carbon Manufacturer for Superior Industrial Performance

Shanxi Xinhua Carbon Technology Industry Co., Ltd. stands ready to support your buying needs with approved, high-performance 20*50 mesh coal quality briquette crushing activated carbon for sale. We have been making defense-grade chemical security technology for over 60 years and work closely with many top research universities, such as Tsinghua University, to make sure that the quality of our products is higher than what the market requires. We can deliver standard orders within 7–15 days because we have multiple production facilities that keep full inventories. For urgent projects, we offer accelerated 3-day service. Our technical team can completely change the product's shape, surface area, and pores to meet the needs of your unique purpose. Email us at greta@carbonxinhua.com to talk about your purification problems and get full product specs that are made to fit your needs. Visit xhcarbontech.com to see our full range of activated carbon products and learn how our ISO-certified quality systems and global logistics can help you improve performance and make your supply chain more efficient.

References

1. American Water Works Association. (2021). AWWA B604: Granular Activated Carbon Standards for Water Treatment Applications. Denver: AWWA Publications.

2. ASTM International. (2020). ASTM D2862-20: Standard Test Method for Particle Size Distribution of Granular Activated Carbon. West Conshohocken: ASTM Technical Publications.

3. Bandosz, T.J. (2019). Activated Carbon Surfaces in Environmental Remediation: Interface Science and Technology Series, Volume 7. London: Academic Press.

4. Marsh, H., & Rodríguez-Reinoso, F. (2022). Activated Carbon: Production, Characterization and Applications. Oxford: Elsevier Science Publishers.

5. National Institute for Occupational Safety and Health. (2023). Carbon-Based Filtration Media for Respiratory Protection: Performance Standards and Testing Protocols. Cincinnati: NIOSH Publications.

6. Yang, R.T. (2021). Adsorbents: Fundamentals and Applications in Industrial Gas Purification and VOC Control. Hoboken: John Wiley & Sons Publishers.
